Reliable Multi-Tube Armored Fiber Optic Cable GYTS
Description
1. Outdoor-Ready Design: Crafted to withstand diverse environmental conditions, this cable
ensures reliable performance in outdoor settings.
2. Versatile Installation Options: Compatible with both aerial installations and pipeline laying
methods, it offers flexible deployment solutions to meet various installation requirements.
3. Communication Versatility: Enables efficient data transfer for both long-distance transmissions
and local area networks, making it suitable for a wide range of communication applications.
Application
1. Outdoor Resilience: Designed for outdoor use, providing reliable performance in challenging
weather conditions.
2. Versatile Installation: Flexible deployment options suitable for both aerial and pipeline installations,
adapting to diverse requirements.
3. Communication Adaptability: Facilitates seamless data transfer for long-distance transmissions
and local area networks, accommodating various communication setups across different distances.
Characteristic
1. Adaptable Performance: Ensures reliable operation across varying temperatures and mechanical
stress, guaranteeing consistency in diverse environments.
2. Robust Construction: Hydrolysis-resistant, high-strength loose tubes provide durability, even in
humid conditions.
3. Fiber Protection: Specialized compounds within the tubes effectively shield fibers from potential
damage.
4. Strength and Flexibility: Balances crush resistance, flexibility, and UV protection using a robust
PE sheath to withstand external pressures.
5. Watertight Design: Incorporates a steel wire central strength member, filling compounds within
tubes and cable core, and a PSP layer for maintaining watertight integrity and enhancing moisture
resistance.
-

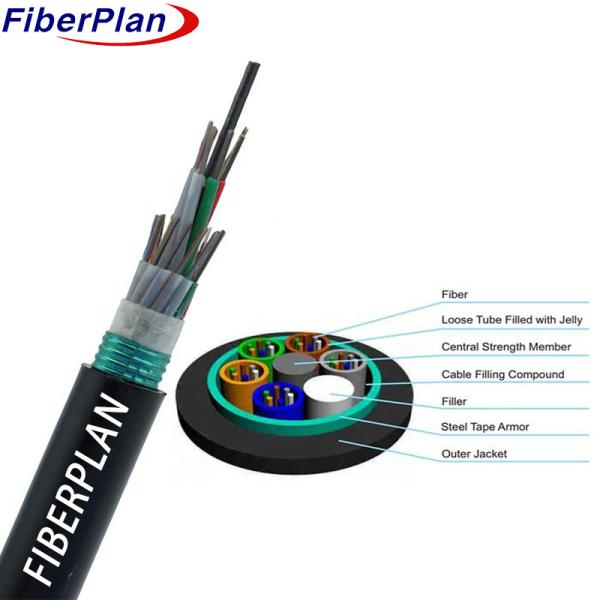

Cable construction details
| Number of fiber | 2~144core |
| Moisture Barrier | Water blocking system |
| Central strength member | Material | Steel wire/FRP/FRP with PE cover |
| size | 1.5mm~2.0mm |
| Loose tube | material | PBT |
| diameter | Ф2.2(outer/inner) |
| Tube-filling | Tube filling compound |
| Armoring | Material | Corrugated steel tape |
| Outer sheath | material | PE,HDPE |
| diameter | 8.0±0.2mm |
Fiber color
| Number of fiber 8 cores per tube | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
| Color 13~24 will be marked with a black tracer. For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
| core | Cable diameter | weight |
| 2 cores to 60 cores | 8.0±0.2mm | 115±2kg/km |
| 72 cores | 10.4±0.2mm | 120±4kg/km |
| 96 cores | 12.4±0.3mm | 180±5kg/km |
| 144 cores | 14.4±0.4mm | 245±5kg/km |
| Min Bending Radius(mm) | Long term | 10D |
Min Bending
Radius(mm) | Short term | 20D |
Min allowable
Tensile Strength(N) | Long term | 600 |
Min allowable
Tensile Strength(N) | Short term | 1500 |
| Crush Load (N/100mm) | Long term | 300 |
| Crush Load (N/100mm) | short term | 1000 |
Operation
temperature (℃) | -40 ~ +70 |
Installation
temperature(℃) | -20 ~ +60 |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- |
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | |
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302,
≤1322 | ---- | ---- | ≧ 1295,
≤1320 |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- |
| PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 |
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- |
| Fibre cutoff wavelength λc | nm | ≧ 1180,
≤1330 | ≧1180,
≤1330 | ---- | ---- | ---- |
Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- |
| MFD | 1310nm | um | 9.2±0.2 | 9.2±0.2 | ---- | ---- | ---- |
| 1550nm | um | 10.4±0.6 | 10.4±0.6 | ---- | ---- | ---- |
| Numerical Aperture(NA) | | ---- | ---- | 0.200±0.015 | 0.275±0.
015 | 0.200±0
.015 |
Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | |
| Core dimater | um | | | 50±0.9 | 62.5±2.1 | 50±0.9 |
| Cladding diameter | um | 125.0±0.2 | 125.0±0.2 | 125.0±0.3 | 125.0±0.3 | 125.0±0.5 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±5 | 242±5 | 242±5 | 242±5 | 242±5 |
Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
